The new Lennox Vertical AHU Mini-Split Unit

Now available! The Lennox Real non-VRF wall-mounted, AHU mini-split unit with the features that make it optimal for the multi-family dwelling!

  • Direct-drive, multi-speed motors allow air volume variation for heating/cooling
  • Multi-speed ECM motor
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack
  • Wall-hanging bracket provided
  • Front or bottom return available
  • Optional heating elements of 5kW, 8kW, and 10kW
  • All aluminum coil

Great for tight fit applications taking up minimal space!

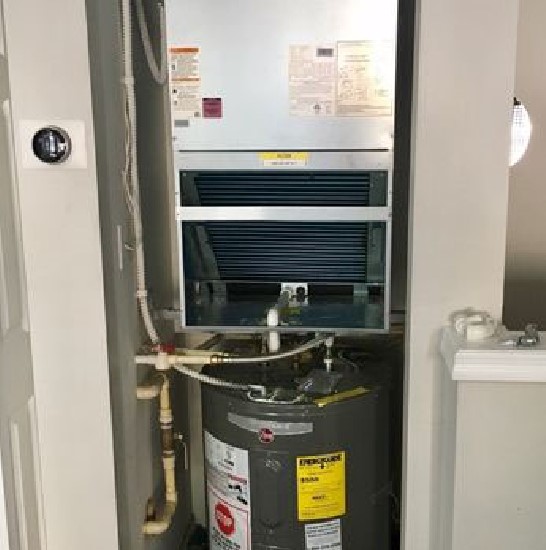

AHU can be installed on the wall (vertically or horizontally) to leave room below for additional equipment, such as the boiler.

Real Comfort

  • Expanded heat pump offering (1.5 – 5T)
  • Heating operation down to –13F
  • Multiple indoor unit tied to a single outdoor unit
  • Sound levels as low as 40 dBA

Real Connection

  • Ability to connect to more than one indoor unit and as many as nine
  • Compatible with conventional indoor units such as furnaces, or air handlers
  • Direct connection to a Lennox traditional air handler and furnaces in a one-to-one connection
  • Utilize existing line sets

Real Control

  • Thermostat versatility with options such as the M30, E30, or any conventional thermostat such as NEST, Honeywell, Ecobee, and more
